Back to Jig Mold Index | Back to Catalogue Main Index

Diner Shiner /Wire Keeper

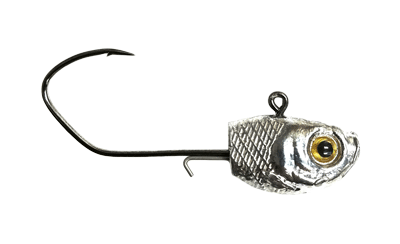

DINER SHINER JIG

The Diner Shiner’s unique profile and detail make this one of the most realistic baitfish imitations on the market. Your choice of your favorite 90 degree Aberdeen jig hook and the ability to pour them with or without wire keeper gives you full capability to customize it your way. Choose your favorite 3D Stick on eyes to really bring your jigs to life.



Item Code Model No. Insert Hook Style No. of Cavities Lure Sizes (oz.) Hook Sizes Price
61-3520 DSJ-6-A Wire -WB400 570, 3052 6 1/16, 1/8, 3/16, 1/4, 5/16, 3/8 4,2,1,1/0 ,2/0,3/0 $79.95
61-3526 DSJ-5-A Wire - WB800 570, 3052 5 3/8, 1/2, 5/8, 3/4, 1 3/0, 6/0 $79.95

Molds listed in black are always in-stock ready to ship!

Model DSJ-6-A (Item 61-3520) also accepts the following jig hooks. Some hooks may require slight mold modification as the leg length vary a little between hook brands and styles.

Hook Style 1/16 oz. 1/8 oz. 3/16 oz. 1/4 oz. 5/16 oz. 3/8 oz.
Eagle Claw L3052 - - - 1/0 2/0 3/0
Eagle Claw 570/575  4 2 1 1/0 2/0 3/0
Mustad 32746 - - - 1/0 2/0 3/0
Eagle Claw 500 4 2 1 1/0 2/0 3/0

Model DSJ-5-A (Item 61-3526) also accepts the following jig hooks. Some hooks may require slight mold modification as the leg length vary a little between hook brands and styles.

Hook Style 3/8 oz. 1/2 oz. 5/8 oz. 3/4 oz. 1 oz.
Eagle Claw L3052 3/0 4/0 5/0 5/0 6/0
Eagle Claw 570/575  3/0 4/0 4/0 - -
Mustad 32746 3/0 4/0 5/0 5/0 5/0
Eagle Claw 500 3/0 4/0 4/0 - -

Diner Shiner DSJ-6-A mold accepts the following 3D or Flat Prism Eyes.

Eye Style 1/16 oz. 1/8 oz. 3/16 oz. 1/4 oz. 5/16 oz. 3/8 oz.
Eye Size 1/8" 5/32" 5/32" 3/16" 7/32" 7/32"

Diner Shiner DSJ-5-A mold accepts the following 3D or Flat Prism Eyes.

Eye Style 3/8 oz. 1/2 oz. 5/8 oz. 3/4 oz. 1 oz.
Eye Size 5/32" 5/32" 1/4" 1/4" 1/4"

Wire Form - WB400

Spring tempered stainless steel wire form wire to be molded into your jig heads. Packaged per 100 or 1000.

Always check your mold for the correct insert.

Item Code Description Approx. O.A. Length Price per 100 Price per 1000
61-2609 Keeper Wire WB400 0.400" / 10mm $12.99 $99.99
61-2617 Keeper Wire WB800 0.812" / 20.5mm $12.99 $99.99
61-2649 Keeper Wire WDB1000 0.985" / 27.0mm $12.99 $99.99
