Casting Your Own Lead Jigs

Making your own lead jigs and other lead lures is a simple process, but as you can see you do require a few extra tools. Just follow the steps listed below to make your own lead jigs. You will follow the same basic steps to mold a large variety of different lures such as spinnerbaits, buzz baits, jigging spoons, sinkers and other lead lures.


To enlarge the photo simply click on the photo
then click the
<BACK> button or <BACK ARROW> to return to this page.

All the jig and sinker molds, hooks, paint and tools used to make
these and other jig styles is available from Real Pro's SportFishing.
Download: Real Pro's SportFishing's Sinker and Lure Mold Catalogue

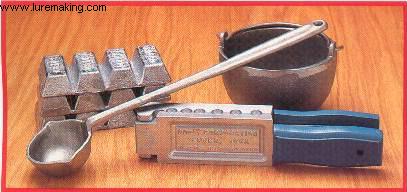

Necessary Equipment: Lead, melting
equipment (melting pot and ladle) and
Do-It mold. Lead melts at 620°F so you require
a reliable source of heat.
Click to enlarge photo.

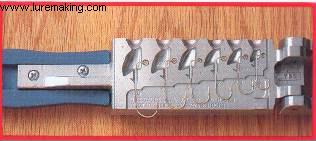

Step 1: Place hooks or other components in mold
cavity.
Click to enlarge photo.
Step 2: Carefully pour lead into mold cavities. Click to enlarge photo.
Step 3: The lead will cool quickly. Carefully remove jig
heads from mold. Caution: They are still hot!
Click to enlarge photo.
Step 4: Remove spruce from the jigs with a pair of
gate shears.
Click to enlarge photo.
Step 5: Paint lures as desired with vinyl jig paint or
powder paint.
Click to enlarge photo.
Step 6: (Optional) Tying bucktail using
tying vise and bobbin.
Click to enlarge photo.

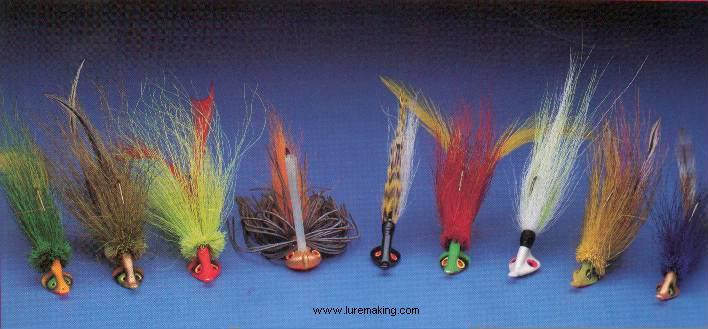

A few complete jigs.

Click to enlarge photo.

A few more complete jigs.

Click to enlarge photo.

The Photos on this page are © copyright Do-It Corporation
