Dual Injector System - with
Gen 2 Mixing Block
The Dual Injector System allows you to
inject two colours of plastisol with a single injection, a huge time saver.
 |
 |

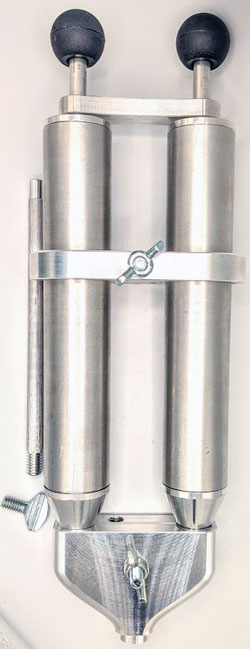

COMPLETE
DUAL INJECTION SYSTEM
This is a complete assembled dual injection system. System Includes two
injectors. Available with two 4oz injectors # 61-91340
(8oz total) or two 6oz injectors # 61-91350 (12 oz total).
Featuring our GEN 2 Mixing Block.
Super smooth action. We use these in our shop
almost daily with amazing results. This is a really slick set up.
Lubricate your injectors with a little worm oil.
|

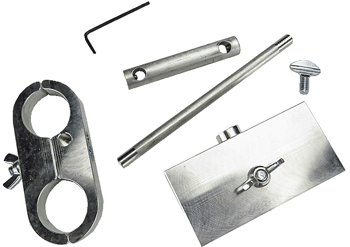

DUAL INJECTION
CONVERSION KIT - No Injectors
This is a conversion kit # 61-91341 for the folks
that already have two of our 4oz or 6oz injectors. This kit contains everything
you need to assemble your own dual injector system. Featuring our GEN 2
Mixing Block.
NOTE: Conversion kit does not include the
injectors
Add a few drops of worm oil
to lubricate your injectors
to keep the action super smooth.
|
| Item
Code |
Description |
Price
(CAD) |
| 61-91340 |
Complete
Dual 8oz (2x 4oz) Injection System w / GEN 2 Mixing Block |
$259.99 |
| 61-91350 |
Complete
Dual 12oz (2 x 6oz) Injection System w / GEN 2 Mixing Block |
$299.99 |
| 61-91341 |
Conversion
Kit - works with 4oz or 6oz injectors |
$139.99 |
Double Injection
System and Double Injection Conversion Kits are non-discountable.
|

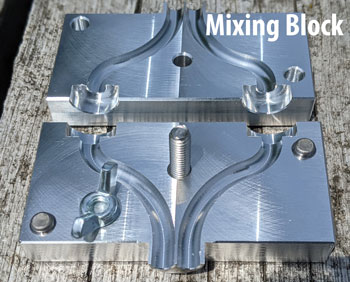

2.25" Gen 2 Mixing
Block
Our Gen2 Mixing Block has been completely redesigned from the
ground up improving visibility along with a weight reduction of more than
50% giving you much better heat control.
New Geometry: The new geometry provides you with unrestricted line-of-sight to
adjacent injection ports and eliminates the sealing of other ports on your
multi-port molds.
Weight Reduction for longer injection time: The GEN2 Mixing
Block weight has been reduced by more than 50% which significantly
increases injection time, allowing you to inject more ports before the
block absorbs heat from your heated plastic.
|
Gen 2 Mixing Block
|
Upgrade to the
New Gen 2 Mixing Block for only $54.99
If you purchased one of the original dual injectors from us you
automatically qualify to
purchase one Gen 2 Mixing Block with a 50% discount (item # 63-.9750).
Order yours today!
New Geometry: The new geometry provides you with unrestricted line-of-sight to
adjacent injection ports and eliminates the sealing of other ports on your
multi-port molds. |
Weight Reduction for longer injection time: The GEN2 Mixing
Block weight has been reduced by more than 50% which significantly
increases injection time, allowing you to inject more ports before the
block absorbs heat from your heated plastic. |
|
Gen 2 Mixing Block
|
 |
Dual Injector Parts
We've been asked to stock dual injector
parts. Having additional Mixing Blocks on hand is a real time saver
when running your production. Use with either 4oz and 6oz injectors.
| Item
Code |
Description |
Price
(CAD) |
| 63-9750 |
GEN2
Mixing
Block - 2.25 inch Spacing |
$109.99 |
| 63-9751 |
Dual
Tube Clamp |
$29.99 |
| 63-9752 |
Plunger
Rod Holder, Allen Key &
2 set Screws |
$9.99 |
| 63-9753 |
Mixing
Block Handle (5/16" Rod) |
$9.99 |
| 63-9754 |
Set
Screw (2 pack) |
$1.99 |
| 63-9755 |
Allen
Key (5/64") |
$1.99 |
| 63-9770 |
Aluminum
Push
Stop |
$9.99 |
Injectors. Double
Injectors and Replacement Parts are non-discountable.

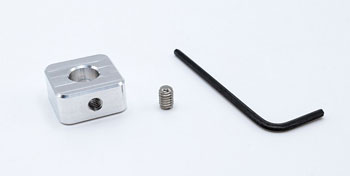

Push Stop -
Works with Do-It Mold's 4oz and 6oz injectors
Push Stop includes set screw
and Allen key!
Item: 63-9770 |
Injector not included
|
- Prevents the
nozzle from accidentally being pushed out of the injector.
This adjustable work stop lets you set the exact travel distance for the
injector plunger, protecting you from accidentally pushing the nozzle out of
the injector.
- Fully Adjustable.
The stop can be quickly moved along the injector rod and locked place using
the included Set Screw and Allen Key (5/64").
- Works with
Do-It's non-locking injectors. Compatible with Do-It's 4oz
and 6oz injectors and other injector brands using a standard 5/16-inch
diameter push rod.
- Installs in Seconds.
Simply unscrew the knob, Slide the Push Stop on the rod then secure the Push Stop with the set screw.
- Made to
Last. Made from 6061 aluminum.
Injector O-Rings
| Item
Code |
Size |
Price
Pack of 2 O-Rings |
Price
Pack of 10 O-Rings |
| 61-91347 |
Medium
Injector O-Rings (2 Pack) |
$2.99 |
$11.99 |
| 61-91344 |
Large
Injector O-Rings (2 Pack) |
$5.99 |
- |
O-Rings are non-discountable.
COMPLETE
19oz DUAL INJECTION SYSTEM -
All New "Exclusive" to Luremaking.com

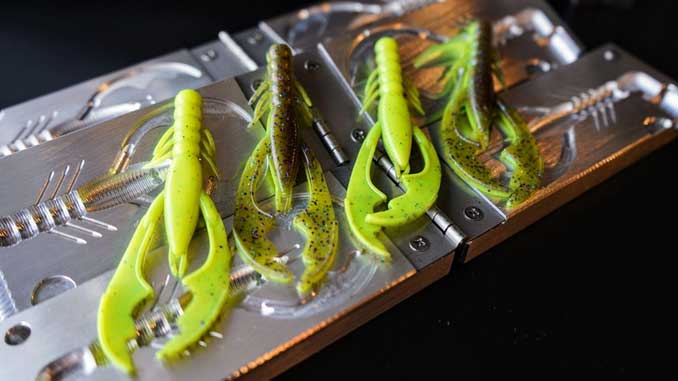

The
New Dual 9.5oz (combined total of 19oz) 19oz
DUAL COLOR SOFT PLASTIC INJECTOR allows
you to inject two color laminate baits. The complete Kit (Item 63-9760) includes
(2) 9.5oz Single Handle Injectors, Tube Clamp, Dual Plunger Rod Holder and Two
Port Mixing Block.
The
19oz dual injector system is ideal for the bait maker injecting large volumes of
baits. You can inject more molds without having to refill your injector which is
a huge production time saver.
Common
Mistakes When Making Laminate Baits with Dual Injector. (Link to article on
Do-It Molds web site.)
